Keysight
示波器
Product Detail

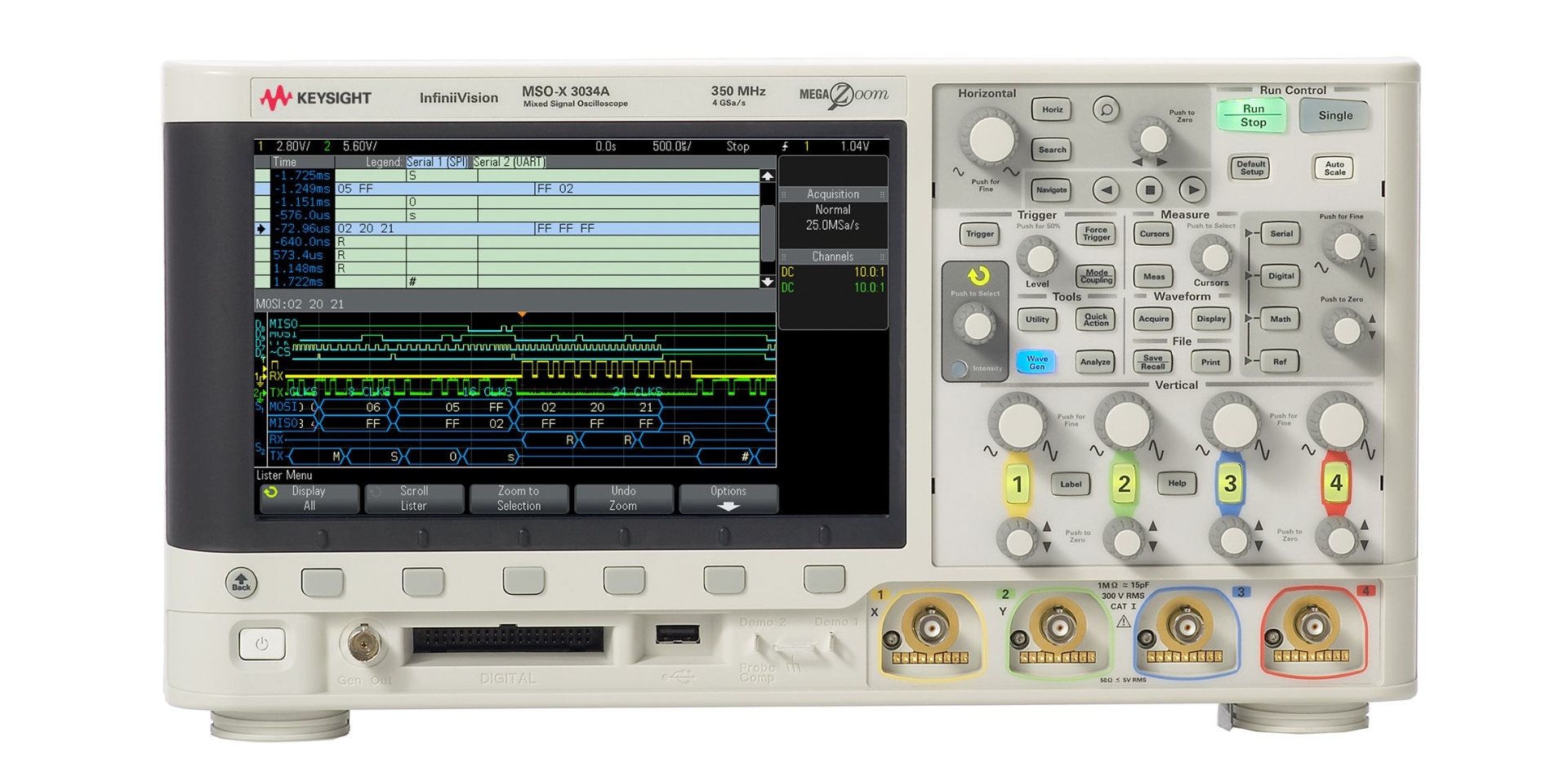

MSOX3034A Mixed Signal Oscilloscope: 350 MHz, 4 Analog Plus 16 Digital Channels
型号：MSOX3034A分类：示波器
The InfiniiVision 3000A X-Series redefined oscilloscopes. It sees the most signal detail, does more functions than any other oscilloscope, and gives you maximum investment protection. The 3000A X-Series’ innovation starts with the industry’s only 6-instruments-in-1 integration, delivering more scope for the same budget with breakthrough technology.
Bandwidth
350 MHz
Channels
4 Analog + 16 Digital
Rise Time
≤ 1 ns
Sample Rate
4 GSa/s
Specifications
详细规格
Bandwidth
350 MHz
Rise Time
≤ 1 ns
Channels
4 Analog + 16 Digital
Sample Rate
4 GSa/s
Memory Depth
2 Mpts (std), 4 Mpts (opt)
Waveform Update Rate
> 1,000,000 wfms/s
Input Impedance
Selectable 1 MΩ or 50 Ω
Horizontal Range
2 ns/div to 50 s/div
Display
8.5-inch WVGA
Highlights
产品亮点
Keysight
Keysight 3000X Series
Bandwidth: 350 MHz
Rise Time: ≤ 1 ns
Channels: 4 Analog + 16 Digital
Sample Rate: 4 GSa/s
