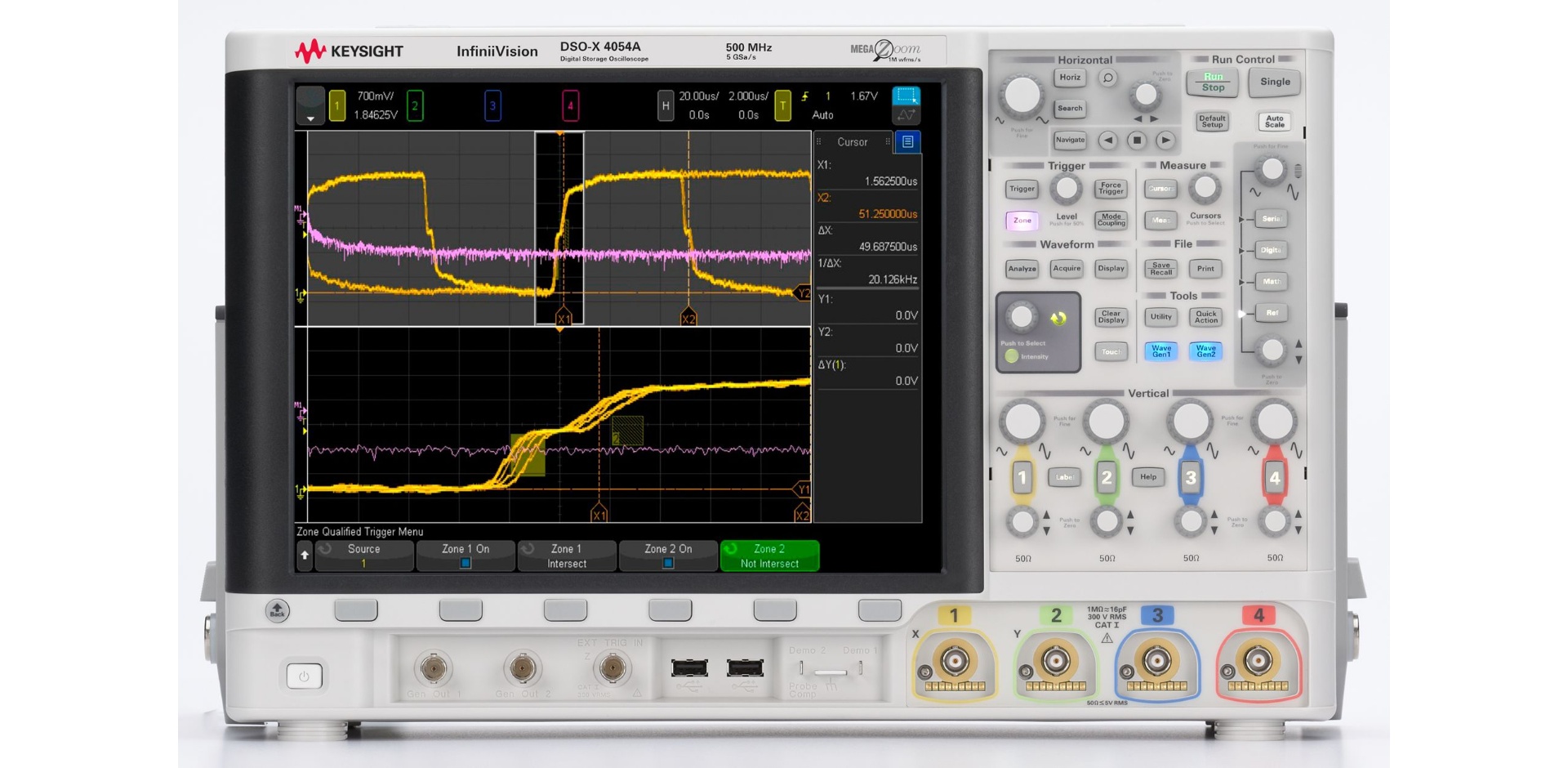

DSOX4054A Oscilloscope: 500 MHz, 4 Analog Channels
型号：DSOX4054A分类：示波器
The InfiniiVision 4000 X-Series boasts a 12.1-inch capacitive touch display and the industry’s only uncompromised > 1,000,000 waveforms/sec update rate.
Bandwidth
500 MHz
Channels
4 Analog
Rise Time
≤ 700 ps
Sample Rate
5 GSa/s
Specifications
详细规格
Bandwidth
500 MHz
Rise Time
≤ 700 ps
Channels
4 Analog
Sample Rate
5 GSa/s
Memory Depth
4 Mpts
Waveform Update Rate
> 1,000,000 wfms/s
Input Impedance
1 MΩ / 50 Ω
Horizontal Range
2 ns/div to 50 s/div
Display
12.1-inch Capacitive Touch
Highlights
产品亮点
Keysight
Keysight InfiniiVision 4000 X-Series
Bandwidth: 500 MHz
Rise Time: ≤ 700 ps
Channels: 4 Analog
Sample Rate: 5 GSa/s
