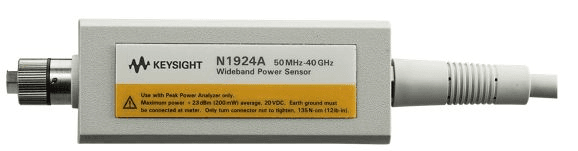

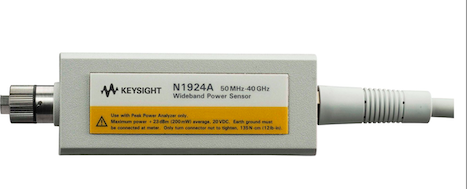

N1924A 宽带Power Sensor, 50 MHz to 40 GHz
Zero and calibrate while connected to the DUT
-35 dBm to +20 dBm wide dynamic range for peak power measurements
Calibration factors, linearity, temperature, and bandwidth correction data stored in EEPROM
产品亮点
同类产品推荐
8481D DiodePower Sensor
Excellent SWR for reducing mismatch uncertainty Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) Compatible with EPM (N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter Accurate average power measurements over -70 to -20 dBm Frequency range 10 MHz to 18 GHz Diode power sensing element
8483A Power Sensor
75 ohm input impedance power sensor. Excellent SWR for reducing mismatch uncertainty. Accurate calibration and traceability to US National Institute of Standards and Technology (NIST). Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter. Accurate average power measurements over -30 to +20 dBm. Frequency range 100 kHz to 2 GHz. Thermocouple power sensing element.
8485D DiodePower Sensor
Excellent SWR for reducing mismatch uncertainty Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter Accurate average power measurements over -70 to -20 dBm Frequency range 50 MHz to 26.5 GHz Diode power sensing element The Keysight 11708A 30 dB attenuator is supplied with 8480 series power sensors with the D suffix, for calibration with the power meter 0 dBm, 50 MHz reference.
