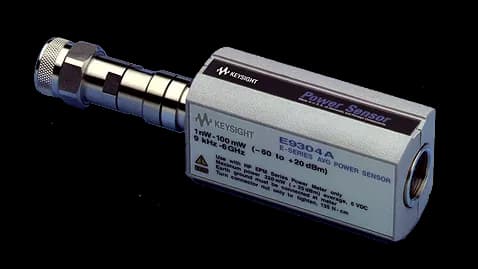

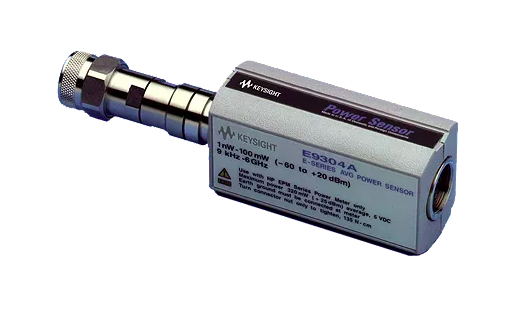

E9304A E Series平均Power Sensor
Low frequency coverage (9 kHz to 6 GHz) for EMC/EMI test applications such as the radiated immunity test (IEC61000-4-3)
High sensitivity (-60 to +20 dBm) and fast measurement speed to reduce the time taken to calibrate radiated field uniformity and EMC/EMI test receivers
Measure transmitter power and receiver sensitivity at Very Low Frequency (VLF) to microwave frequencies
