信号发生器产品中心
专业的射频信号源解决方案，提供高精度、宽频率范围的信号生成能力

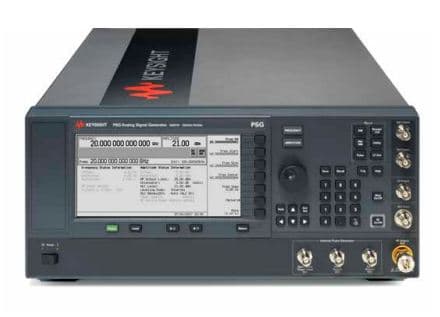

E8257D PSG AnalogSignal Generator, 100 kHz to 67 GHz
Take on your toughest test requirements with metrology-grade frequency and level accuracy, excellent distortion, and spurious characteristics Measure across a wide frequency range: 13, 20, 31.8, 40, 50, and 67 GHz models available (1.1 THz with frequency extender) Test high-power devices and overcome test system losses with options capable of generating up to 1 W (+30 dBm) of output power Get extremely low phase noise: –91 dBc/Hz at 100 Hz offset and –126 dBc/Hz at 10 kHz offset (10 GHz), to address Doppler radar, ADC and receiver-blocking tests Characterize devices and circuits by adding AM, FM, PM and pulse modulation to your signal

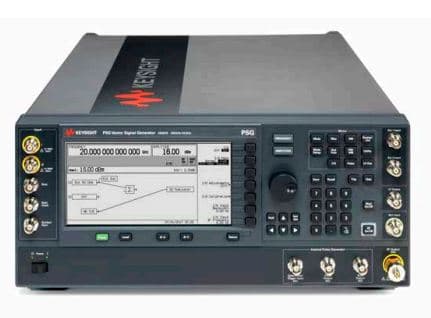

E8267D PSG VectorSignal Generator, 100 kHz to 44 GHz
Test advanced receivers with realistic wideband radar, EW, and Satcom waveforms with metrology-grade performance and versatile capabilities Simulate complex electromagnetic environments with up to 80 MHz of bandwidth Flexible, integrated 80 MHz AWG, real-time and baseband generator to simulate cellular, wireless, GPS, and custom communications Reduce the time you spend creating complex signals with PathWave Signal Generation software: pulse building, noise power ratio (NPR), multi-tone signals, wireless and more Master your most complex signal requirements with the industry’s best SSB phase noise: 143 dBc/Hz at 1 GHz (10 kHz offset)

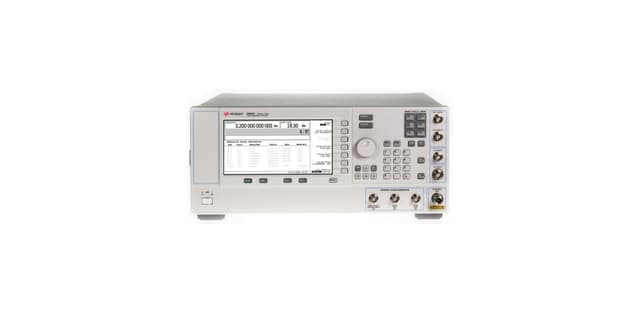

E8663D PSG RFAnalogSignal Generator, 100 kHz to 9 GHz
Tackle demanding radar and satellite communications measurements with metrology-grade performance, including high output power and superior level accuracy Use as an ideal reference in phase noise test systems or for analog-to-digital converter testing with the lowest phase noise in a commercial source Characterize devices and circuits by adding AM, FM, ΦM, and pulse modulation to your signal Improve existing test system performance. The E8663D is built on the outstanding legacy of the 8663A and is fully code compatible

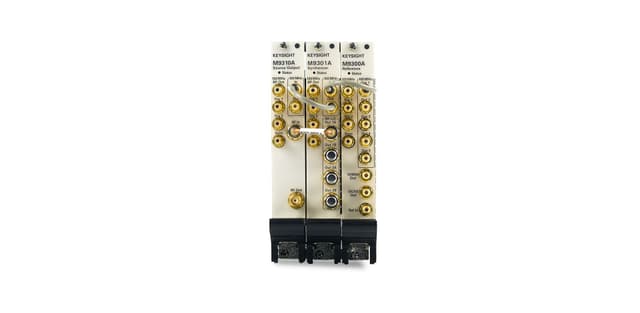

M9380A PXIe Continuous Wave (CW)Signal Source
Save space with a compact, modular analog signal generator Gain Keysight quality and performance for local oscillator (LO) substitution, interference, and component test Reduce startup time with one-step software installation Minimize need for external amplification with output power of +18 dBm across the frequency range Reduce test time with easy integration into your high-speed automated test system Easily upgrade with license keys

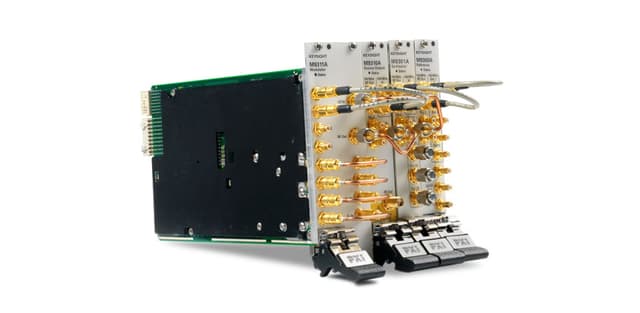

M9381A PXIe VectorSignal Generator
Choose RF modulation bandwidth: 40, 100, or 160 MHz, and easily upgrade as test needs change Increase throughput with fast RF frequency tuning and amplitude switching for high-speed automated test Easily integrate into test environments with IVI-COM, IVI-C, LabVIEW, and MATLAB drivers Scalable platform fits up to 4 channels in one chassis, and 8 channels in multi-chassis configuration Channels time synchronized to within 1 ns and phase coherent to within 1 degree Simplify signal creation with Keysight’s PathWave Signal Generation software

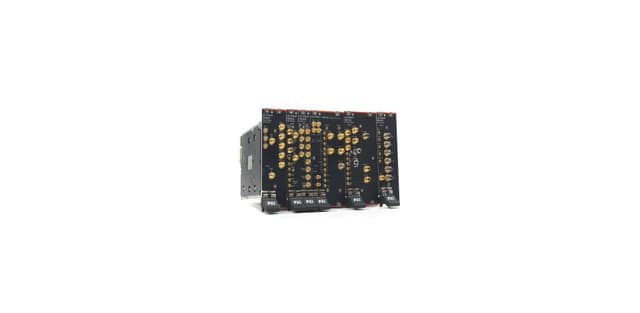

M9383A PXI MicrowaveSignal Generator, 1 MHz to 44 GHz
Modular test solution for design validation that can be efficiently leveraged into manufacturing Flexible design offers rapid and easy upgrades Supports a variety of uses from LO and blocking applications to 5G test Keysight PathWave Signal Generation software simplifies the creation of 5G NR waveforms

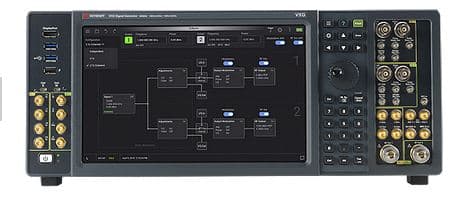

M9384B VXG MicrowaveSignal Generator
Wide RF bandwidth (2 GHz) High output power to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing Phase coherent local oscillator (LO) and baseband synchronization for multi-user or beamforming MIMO OTA testing PathWave Signal Generation software supports application-specific and custom signal creation 3GPP 5G NR standard-compliant signals with channel coding and multi-antenna port support

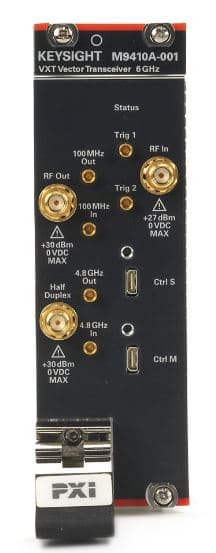

M9410A VXT PXI Vector Transceiver, 300/600/1200 MHz Bandwidth
Support 5G advanced test needs with a signal generation and analysis bandwidth of up to 1.2 GHz. Gain greater test margin for design verification and production test with RF performance, including output power, phase noise, and amplitude accuracy Support a wide range of applications using the same measurement application software used in benchtop instruments including PathWave signal generation, X-Series measurement applications, and vector signal analysis software Perform multichannel (MIMO) and multi-site testing in the design verification and production phase Extend frequency range to mmW (FR2) with S9101A 5G Multi-Band Vector Transceiver

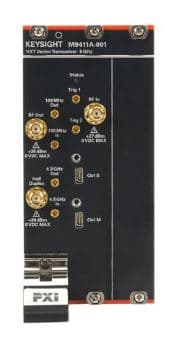

M9411A VXT PXI Vector transceiver
Support 5G advanced test needs with a signal generation and analysis bandwidth of up to 1.2 GHz Support sequencer analyzer measurement mode, improving test efficiency and saving testing time Gain greater test margin for design verification and production test with suprior RF performance, including +20 dBm output power, –129 dBc/Hz phase noise, –166 dBm/Hz displayed average noise level and 0.33% EVM (5G FR1 downlink) Support a wide range of applications using the same measurement application software used in benchtop instruments including PathWave signal generation, X-Series measurement applications, and vector signal analysis software Support SJ001A WaveJudge wireless analyzer toolset, for PHY and MAC layer messaging and timing troubleshooting and correlated RF analysis Perform multichannel (MIMO) and multi-site testing in the design verification and production phase

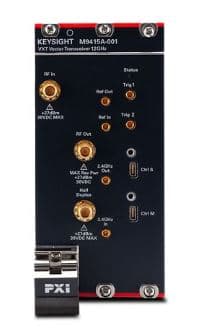

M9415A VXT PXI Vector transceiver, 380 MHz to 6/8/12 GHz
Integrated a vector signal generator and a vector signal analyzer up to 12 GHz in a 3-slot PXIe module Built-in 1.2 GHz signal generation and analysis bandwidth High output power up to >+20 dBm Amplitude accuracy <±0.5 dB for both generator and analyzer Excellent SSB phase noise <-130 dBc/Hz at 1 GHz (10 kHz offset) <0.3 % EVM of 100 MHz bandwidth OFDM signal for accurate 5G test Extend frequency range to mmW (FR2) with S9130A 5G Performance Multi-Band Vector Transceiver

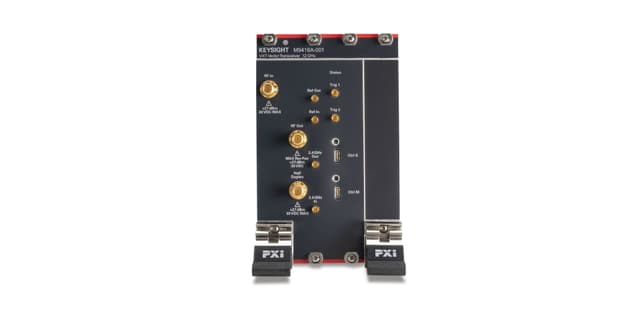

M9416A VXT PXI Vector Transceiver, 380 MHz to 6/8/12 GHz
Integrated a vector signal generator and a vector signal analyzer up to 12 GHz in a 4-slot PXIe module Built-in 1.2 GHz signal generation and analysis bandwidth High output power up to >+20 dBm Amplitude accuracy <±0.5 dB for both generator and analyzer Excellent SSB phase noise <-130 dBc/Hz at 1 GHz (10 kHz offset) <0.3 % EVM of 100 MHz bandwidth OFDM signal for accurate 5G test Accelerate measurement speed with N9065EM1E sequence analyzer measurement application

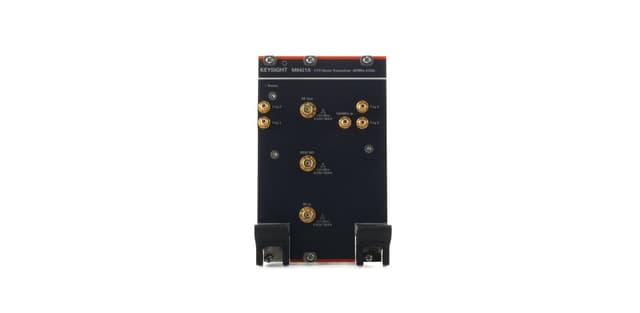

M9421A VXT PXIe Vector transceiver
Get faster throughput in manufacturing test of wireless components, power amplifiers, and RF front-end modules Increase test density and reduce your footprint with up to four VXT instruments in one 18-slot chassis Reduce development time with open-source test libraries and reference solutions Start closer to your finish line with built-in FPGA-accelerated measurements Optimize test routines using proven software for noise figure and standard-specific measurements

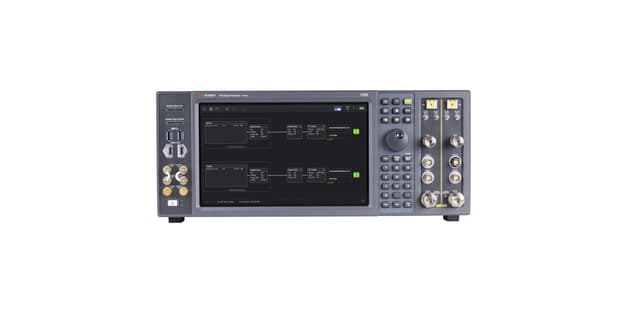

M9484C VXG Vector Signal Generator
Supports MIMO real-time fading for all 3GPP 5G NR base station conformance tests with PathWave Signal Generation software Covers all 5G NR frequency bands and V- / W-band for satellite communications Generates complex wideband signals needed for carrier aggregation and digital pre-distortion (DPD) applications Delivers superior RF performance for accurately characterizing devices under test, such as phase noise, error vector magnitude (EVM), and adjacent channel power ratio (ACPR) Simplifies MIMO and beamforming test setups with up to 4 synchronized and phase-coherent channels in one instrument and more than 32 channels in multiple instruments Streamlines complex receiver test scenarios with the world’s first 8-virtual-signal emulation per RF channel

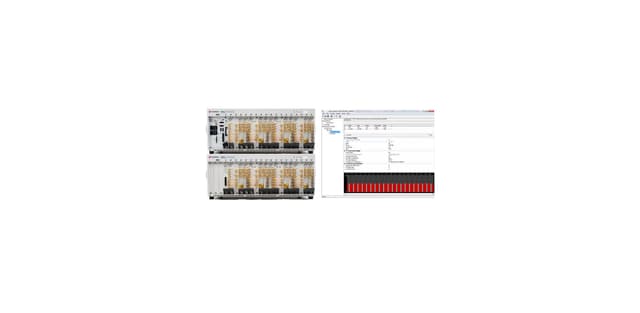

M9950A Software Extension License for Modular Instruments
Extends Keysight Signal Studio software licensing beyond 4-channels for the Keysight M9381A PXIe vector signal generator. Add the Keysight M9950A Option 1TP to enable up to 8 PXI VSG channels with one Signal Studio license.

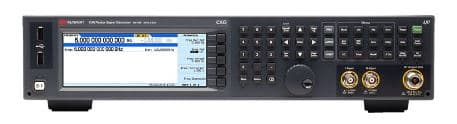

N5166B CXG RFVectorSignal Generator, 9 kHz to 6 GHz
Cover a frequency range of 9 kHz to 3 or 6 GHz and up to 120 MHz RF modulation bandwidth Perform basic parametric testing of components and functional verification of receivers Test your device with multiple verified, standards-compliant vector signals Easily troubleshoot your component within a wireless communication system using a reliable vector signal generator Minimize downtime and expenses with self-maintenance solutions and low-cost repairs

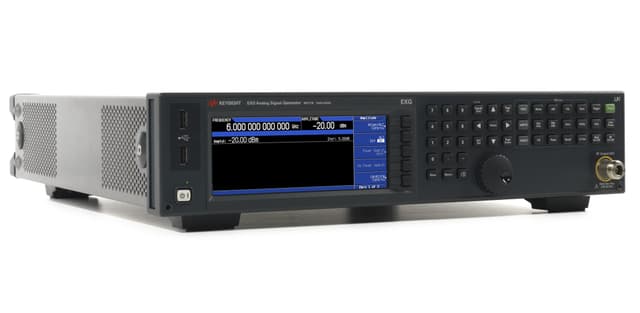

N5171B EXG X-Series RFAnalogSignal Generator, 9 kHz to 6 GHz
Achieve faster throughput and greater uptime Perform basic parametric testing of components and functional verification of receivers with industry-leading output power Thoroughly verify receiver performance by simulating complex analog modulation scenarios with multi-function generator capability Minimize downtime and expenses with self-maintenance solutions and low-cost repairs Confidently test components with an excellent level of accuracy and repeatability Compensate for test system losses with industry-leading output power Maximize throughput with the fast switching speed Shrink your test stand with two rack-unit height Get the performance and capabilities you need today and easily upgrade later Increase uptime with high mean time between failures (MTBF) based on first-generation MXG track record Minimize downtime and expenses with self-maintenance strategy and low-cost repairs

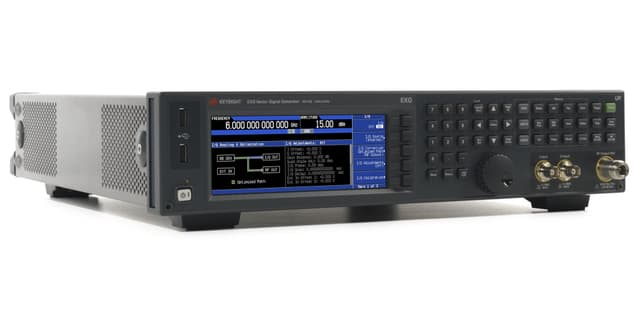

N5172B EXG X-Series RFVectorSignal Generator, 9 kHz to 6 GHz
Achieve faster throughput and greater uptime Perform basic parametric testing of components and functional verification of receivers with excellent ACPR, EVM, and output power Reduce the time you spend on signal creation with PathWave Signal Generation software; purchase only the waveforms you need with 5- and 50-pack licensing Minimize downtime and expenses with self-maintenance solutions and low-cost repairs

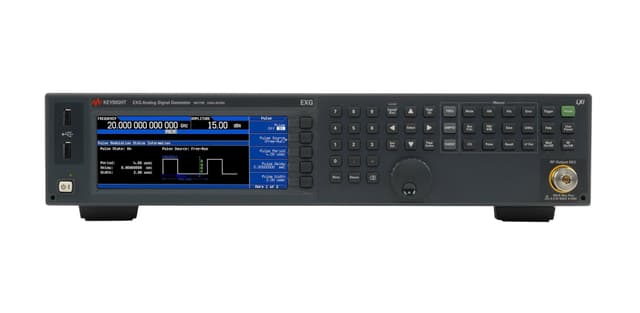

N5173B EXG X-Series MicrowaveAnalogSignal Generator, 9 kHz to 40 GHz
Balance budget and performance to address parametric testing of microwave components and receivers. Address parametric testing of microwave components and receivers. Perform LO up conversion for microwave backhaul links or CW blocking for receiver testing. Maximize test throughput with 600-µs frequency switching. Characterize microwave filters and amplifiers with the best combination of output power, low harmonics, and full-step attenuation. Use as a high-stability system reference: the standard high-performance OCXO has an aging rate of 5x10-10 parts / day.

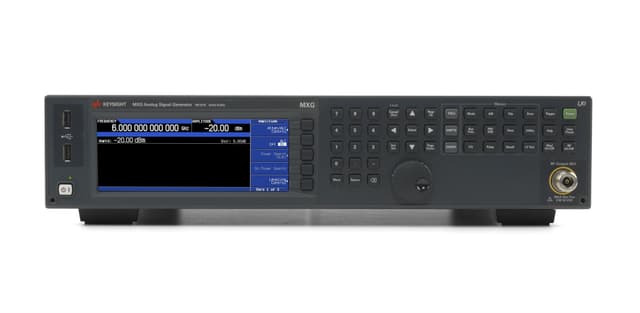

N5181B MXG X-Series RFAnalogSignal Generator, 9 kHz to 6 GHz
Generate the signals you need with outstanding hardware performance, including unmatched phase noise and spurious characteristics Drive power amplifiers and characterize nonlinear behavior with industry-leading output power Thoroughly test receiver performance by simulating complex analog modulation scenarios with multi-function generator capability Lower your cost of ownership with 3-year cal cycles and comprehensive solutions for self-maintenance

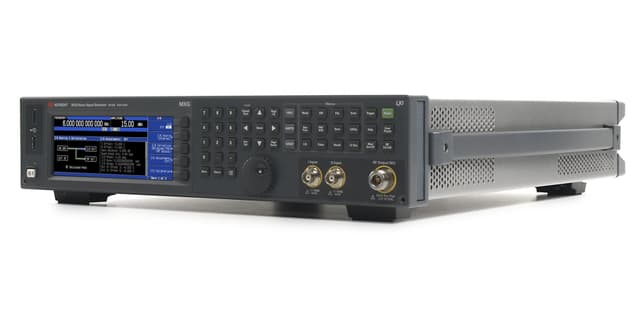

N5182B MXG X-Series RFVectorSignal Generator, 9 kHz to 6 GHz
Take your designs to their limit with outstanding hardware performance, including unmatched phase noise and spurious characteristics. Drive power amplifiers and characterize nonlinear behavior with industry-leading adjacent channel power ratio (ACPR) and output power. Test wideband devices with factory-equalized 160 MHz RF bandwidth. Reduce the time spent on signal creation with PathWave Signal Generation software, including LTE, WLAN, and GNSS. Lower your cost of ownership with 3-year cal cycles and comprehensive solutions for self-maintenance. Frequency ranges: 9 kHz to 6 GHz Phase noise at 1 GHz, 20 kHz offset: –146 dBc/Hz Spurious at 1 GHz (nonharmonics) : –96 dBc Output power at 1 GHz: +27 dBm ACPR (vector) W-CDMA 64 DPCH: –73 dBc EVM (vector) 802.11ac/LTE: 0.4 percent Bandwidth (vector): 160 MHz Arbitrary waveform memory (vector): 1024 MSa standard phase noise standard output power, +18 dBm electronic attenuator CW signal generation vector (I/Q) modulator 50-W reverse power protection country-specific power cord documentation set (CD-ROM)

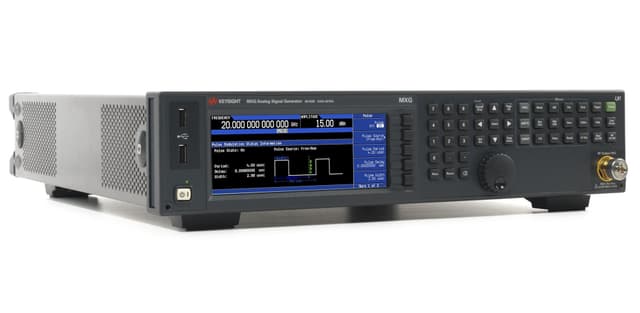

N5183B MXG X-Series MicrowaveAnalogSignal Generator, 9 kHz to 40 GHz
Get a fast, compact (2U) alternative to the PSG in the lab, depot or field Address demanding tests of radar modules & systems with near-PSG levels of spectral purity Compensate for system loss & drive high-power amplifiers: +19 dBm output power, -55 dBc harmonics & -68 dBc spurious @ 20 GHz Reduce calibration time with switching speed 600 µs Simulate narrowband chirps & radar antenna scans with up to five internal function generators that can be used with AM, FM, OM pulse modulation

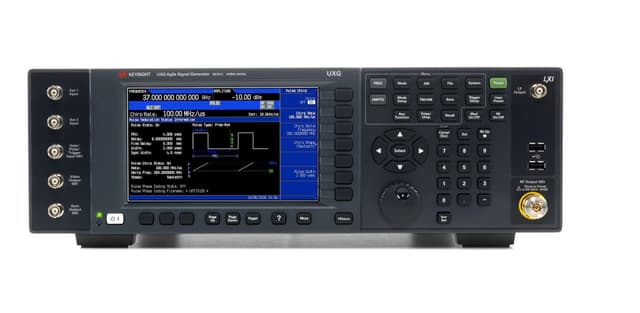

N5191A UXG X Series Agile Signal Generator, improved version
Get closer to reality: simulate increasingly complex signal environments for radar, EW, and antenna-test Test sooner and increase confidence in EW systems by generating signal simulations when you need them: the UXG is a scalable threat simulator Use pulse descriptor words (PDWs) to generate long pulse trains and individually control pulse characteristics Quickly characterize antennas over a wide frequency range with fast frequency tuning Performance without requiring an export license 10 kHz frequency resolution 100 μs switching speed up to 31.6 GHz; 500 µs up to 40 GHz Amplitude range of +10 to -10 dBm Standard phase noise of -117 dBc/Hz (typ) at 20 kHz offset for a 10 GHz carrier frequency 3.5 mm (f) to 3.5 mm (f) connector adapter (20 GHz model only) 2.4 mm (f) to 2.4 mm (f) and 2.4 mm (f) to 2.9 mm (f) connector adapters (40 GHz model only) Country-specific power cord Documentation set (CD-ROM) One day of on-site startup assistance

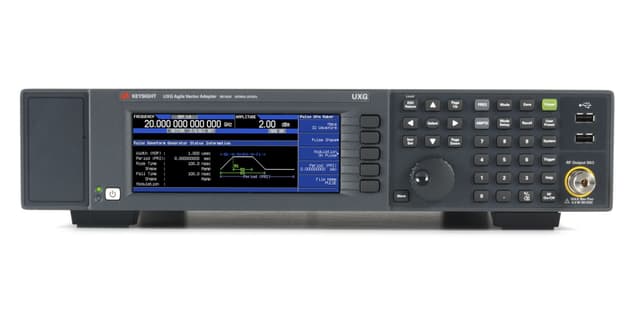

N5192A UXG X-Series Vector Adapter, Modified, 50 MHz to 20 GHz
Take your lab to the next level: simulate increasingly complex signal environments for radar and EW with enhanced realism and greater confidence Rapidly adaptable to provide the multiple channels and port configurations you need 120 dB agile amplitude range Baseband generator with 250 MSa/rate (200 MHz BW) and 512 MSa memory < 500 ns typical update rate 3.5 mm (f) to 3.5 mm (f) connector adapter Country-specific power cord Documentation set (CD-ROM) One day of on-site startup assistance

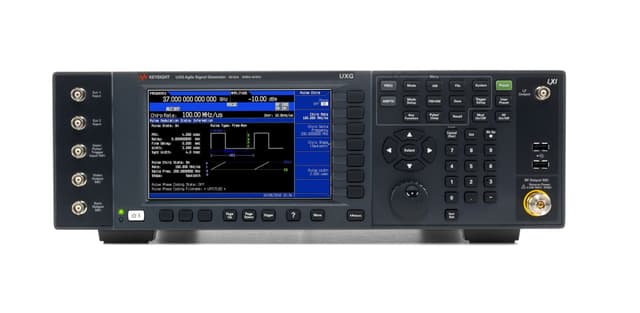

N5193A UXG X-Series Agile Signal Generator, 10 MHz to 40 GHz
Get closer to reality: simulate increasingly complex signal environments for radar, EW & antenna-test Test sooner & increase confidence in EW systems by generating signal simulations when you need them: the UXG is a scalable threat simulator Use pulse descriptor words (PDWs) to generate long pulse trains & individually control pulse characteristics Accurately simulate multi-threat environments: 180-ns PDW update rate, chirps 10 to 25% of carrier frequency, pulses as narrow as 10 ns 10 kHz frequency resolution 100 μs switching speed Amplitude range of +10 to -10 dBm Standard phase noise of -117 dBc/Hz (typ) at 20 kHz offset for a 10 GHz carrier frequency 3.5 mm (f) to 3.5 mm (f) connector adapter (20 GHz model only) 2.4 mm (f) to 2.4 mm (f) and 2.4 mm (f) to 2.9 mm (f) connector adapters (40 GHz model only) Country-specific power cord Documentation set (CD-ROM) One day of on-site startup assistance

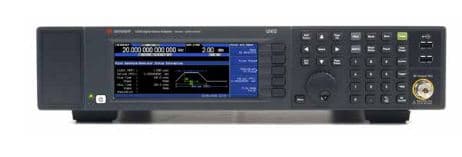

N5194A UXG X-Series Agile Vector Adapter, 50 MHz to 20 GHz
Take your lab to the next level: simulate increasingly complex signal environments for radar and EW with enhanced realism and greater confidence Rapidly adaptable to provide the multiple channel and port configurations you need Ensure coherency across multiple sources with calibration of amplitude, phase, and time 20 GHz option with 3.5 mm(f) to 3.5 mm(f) adapter 40 GHz option with 2.4 mm(f) to 2.4 mm(f) and 2.4 mm(f) to 2.9 mm(f) adapters 120 dB agile amplitude range Baseband generator with 250 MSa/rate (200 MHz BW) and 512 MSa memory < 500 ns typical update rate Country-specific power cord One day of on-site startup assistance

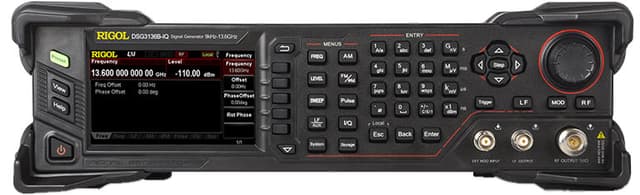

Rigol DSG3065B RF Signal Generator
RF signal generator covering 9 kHz to 6.5 GHz with -110 dBm to +20 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG3065B-IQ RF Signal Generator
RF signal generator covering 9 kHz to 6.5 GHz with IQ modulation support and -110 dBm to +20 dBm amplitude range.
Rigol DSG3136B RF Signal Generator
RF signal generator covering 9 kHz to 13.6 GHz with -110 dBm to +20 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG3136B-IQ RF Signal Generator
RF signal generator covering 9 kHz to 13.6 GHz with IQ modulation support and -110 dBm to +20 dBm amplitude range.
Rigol DSG5122 RF Signal Generator
RF signal generator covering 9 kHz to 12 GHz with -30 dBm to +25 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG5124 RF Signal Generator
RF signal generator covering 9 kHz to 12 GHz with -30 dBm to +25 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG5126 RF Signal Generator
RF signal generator covering 9 kHz to 12 GHz with -30 dBm to +25 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG5128 RF Signal Generator
RF signal generator covering 9 kHz to 12 GHz with -30 dBm to +25 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG5202 RF Signal Generator
RF signal generator covering 9 kHz to 20 GHz with -30 dBm to +25 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG5204 RF Signal Generator
RF signal generator covering 9 kHz to 20 GHz with -30 dBm to +25 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG5206 RF Signal Generator
RF signal generator covering 9 kHz to 20 GHz with -30 dBm to +25 dBm amplitude range and AM/FM/PM/Pulse modulation.
Rigol DSG5208 RF Signal Generator
RF signal generator covering 9 kHz to 20 GHz with -30 dBm to +25 dBm amplitude range and AM/FM/PM/Pulse modulation.

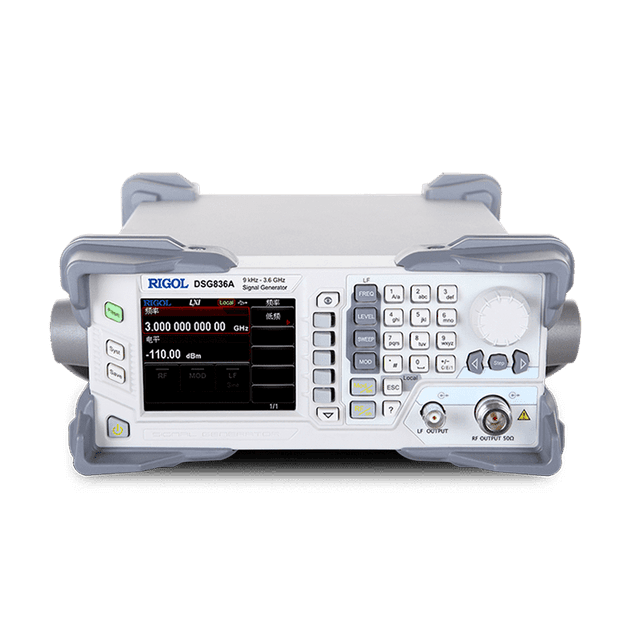

Rigol DSG815 RF Signal Generator
Compact RF signal generator covering 9 kHz to 1.5 GHz with -110 dBm to +13 dBm amplitude range.
Rigol DSG821 RF Signal Generator
Compact RF signal generator covering 9 kHz to 2.1 GHz with -110 dBm to +13 dBm amplitude range.
Rigol DSG821A RF Signal Generator
Compact RF signal generator covering 9 kHz to 2.1 GHz with IQ modulation support and -110 dBm to +13 dBm amplitude range.
Rigol DSG830 RF Signal Generator
Compact RF signal generator covering 9 kHz to 3 GHz with -110 dBm to +13 dBm amplitude range.
Rigol DSG836 RF Signal Generator
Compact RF signal generator covering 9 kHz to 3.6 GHz with -110 dBm to +13 dBm amplitude range.
Rigol DSG836A RF Signal Generator
Compact RF signal generator covering 9 kHz to 3.6 GHz with IQ modulation support and -110 dBm to +13 dBm amplitude range.
SSG3021X RF Signal Generator, 2.1 GHz
External IQ modulation support (on IQE models)

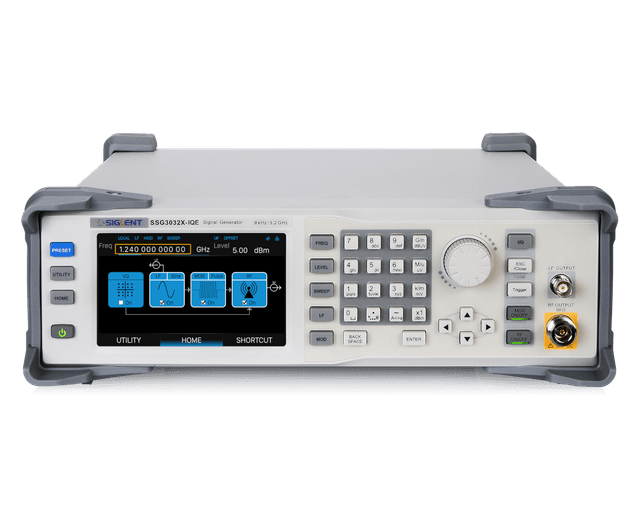

SSG3021X-IQE RF Signal Generator, 2.1 GHz with IQ
Siglent ssg3000x products.

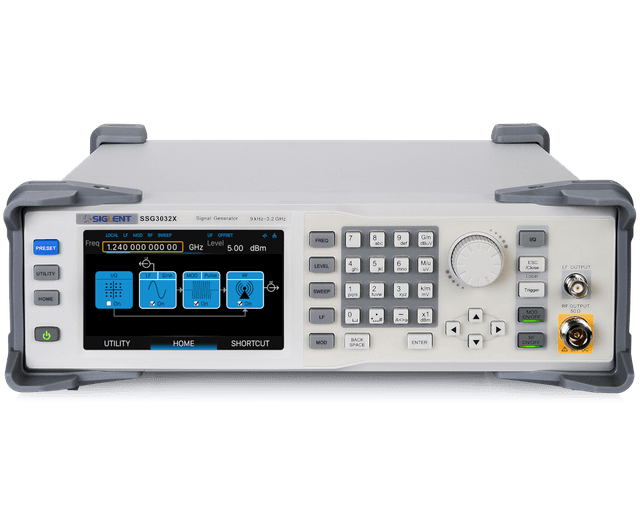

SSG3032X RF Signal Generator, 3.2 GHz
Siglent ssg3000x products.
SSG3032X-IQE RF Signal Generator, 3.2 GHz with IQ
Siglent ssg3000x products.

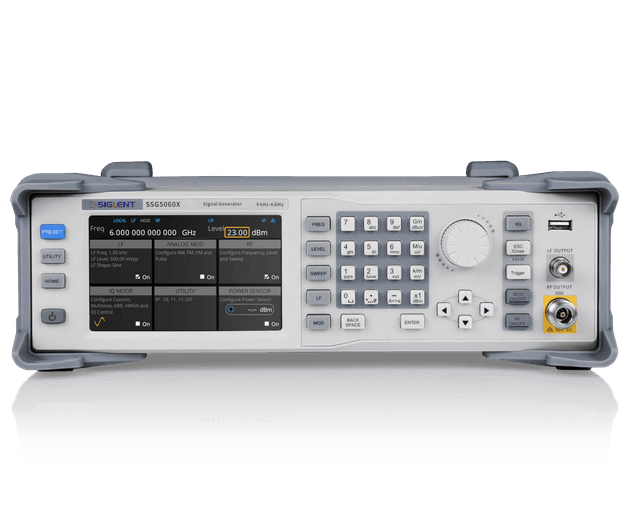

SSG5040X RF Signal Generator, 4 GHz
5-inch capacitive touch screen
SSG5040X-V Vector Signal Generator, 4 GHz
Siglent ssg5000x products.
SSG5060X RF Signal Generator, 6 GHz
Siglent ssg5000x products.
SSG5060X-V Vector Signal Generator, 6 GHz
Siglent ssg5000x products.
SSG5083A Microwave Signal Generator, 13.6 GHz
Frequency setting resolution 0.001 Hz

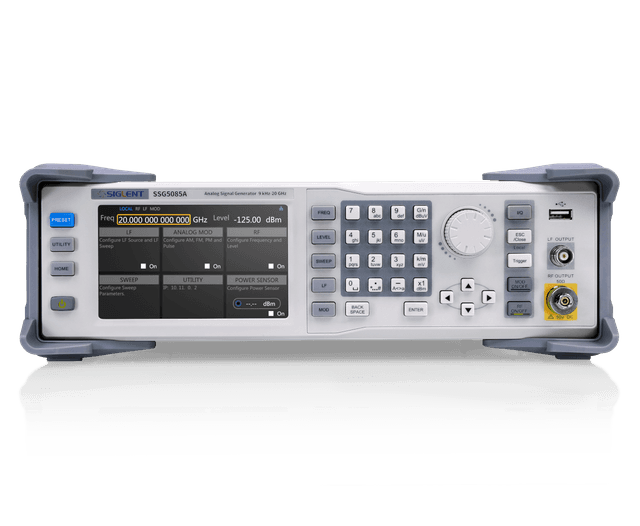

SSG5085A Microwave Signal Generator, 20 GHz
Siglent ssg5000x products.

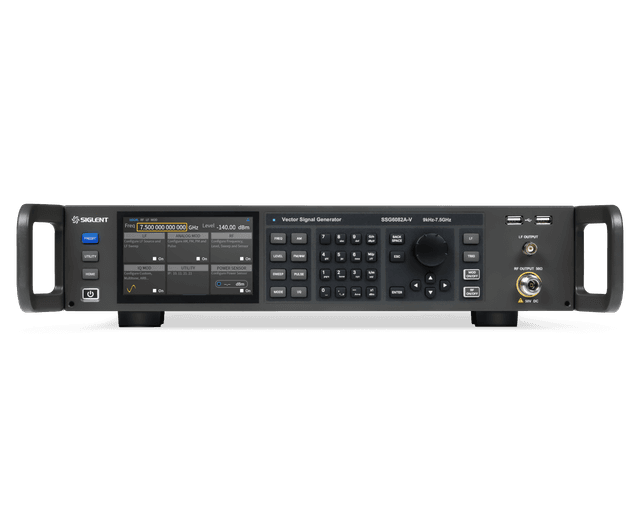

SSG6082A-V Vector Signal Generator, 8 GHz
MIMO support, AWGN, Power Meter Control
SSG6083A Microwave Signal Generator, 13.6 GHz
0.001 Hz Frequency Resolution
SSG6085A Microwave Signal Generator, 20 GHz
Siglent ssg6000x products.

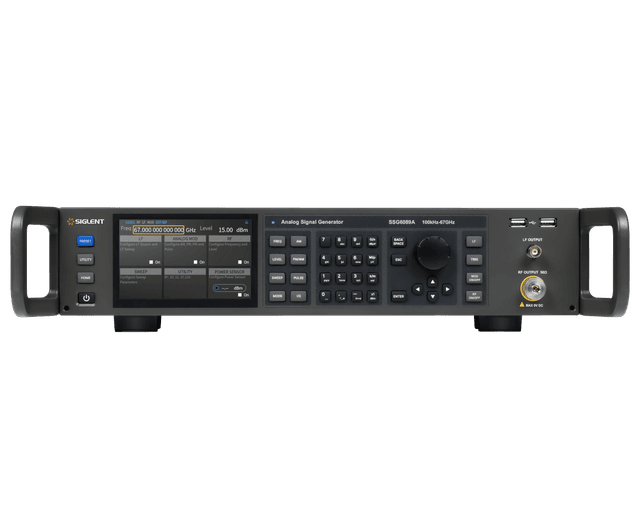

SSG6087A Microwave Signal Generator, 40 GHz
Siglent ssg6000x products.
SSG6089A Microwave Signal Generator, 67 GHz
Siglent ssg6000x products.
SSG6283A Microwave Signal Generator, 13.6 GHz
CW mode 9 kHz-13.6 GHz, two phase-coherent channels with 0.001 Hz resolution.
SSG6285A Microwave Signal Generator, 20 GHz
CW mode 9 kHz-20 GHz, 2 coherent channels, low phase noise and wide output power range.
SSG6483A Microwave Signal Generator, 13.6 GHz
CW mode 9 kHz-13.6 GHz with 4 coherent channels and 0.001 Hz resolution for large testbeds.

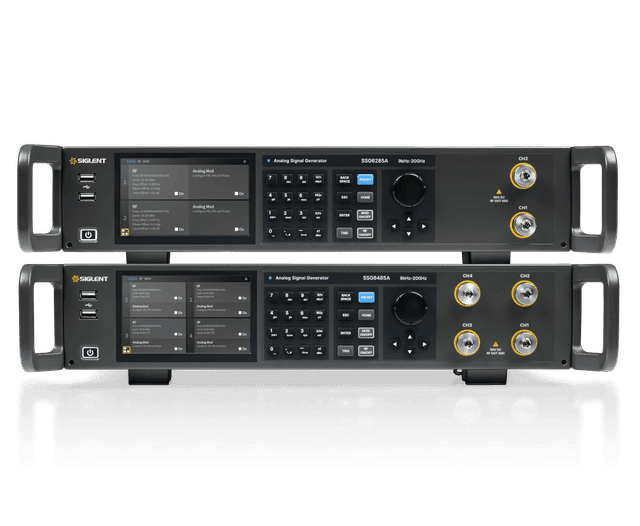

SSG6485A Microwave Signal Generator, 20 GHz
CW mode 9 kHz-20 GHz, 4-channel phase-coherent outputs with ±1.5° stability and optional pulse sequencing.
SSG6M80A Multi-Channel Phase-Coherent Microwave Signal Generator
SSG6M80A series delivers coherent multi-channel outputs from 9 kHz to 20 GHz with ultra-low phase noise, independent channel control and rich modulation suites for demanding RF testbeds.
